Window and Door Furniture Market leaders in aluminium windows and doors, sliding doors, sliding windows, bifold doors, adjustable louvres, double glazed windows, commercial shopfront & curtain wall systems https://www.lidcotechnicals.com.au/window-and-door-furniture Fri, 23 May 2025 12:29:18 +0000 Joomla! 1.5 - Open Source Content Management en-gb Architectural Mortice Lock Option https://www.lidcotechnicals.com.au/window-and-door-furniture/architectural-mortice-lock https://www.lidcotechnicals.com.au/window-and-door-furniture/architectural-mortice-lock Architectural Mortice LockIntroducing the new architectural mortice lock option suitable for use with the DuoTherm™ Sliding/Stacking Door – 370 System and the DuoTherm™ Sliding/Stacking Window – 372 System. The sleek low profile, minimalist design perfectly complements the bold lines of the DuoTherm™ systems.

The mortice lock is backset 30mm and is suitable for use with the 75mm wide stile (370-147).

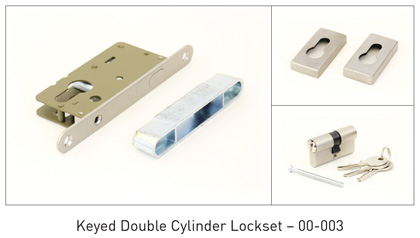

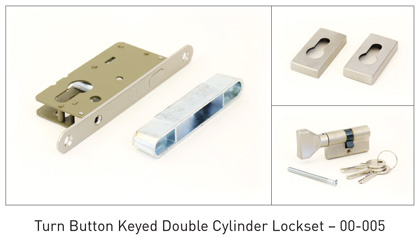

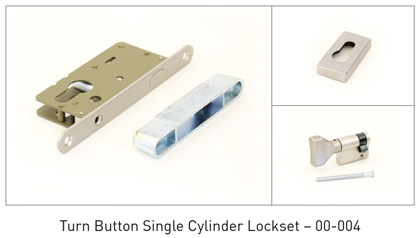

There are four cylinder options available, the keyed single cylinder (00-002), keyed double cylinder (00-003), turn button single cylinder (00-004), and turn button/keyed double cylinder (00-005).

The mortice lock is available with a surface finish in satin stainless steel.

The lock components are made in Italy to the highest quality levels. The mortice lock is in stock and available now.

Technical Memo 117: Architectural Mortice Lock Option

00-005-lockset

00-005-lockset

00-005-lockset

00-005-lockset

videocap

]]> asdfasdfasdf (Administrator) Furniture Wed, 11 Sep 2013 05:17:05 +0000 Sorrento Mortice Lock and Handle https://www.lidcotechnicals.com.au/window-and-door-furniture/sorrento-mortice-lock-and-handle https://www.lidcotechnicals.com.au/window-and-door-furniture/sorrento-mortice-lock-and-handle

Sorrento Hardware

Sorrento Mortice Lock and Handle Sorrento Twin Bolt for Bifold with Low Profile Handle

New Sorrento mortice lock and handle suitable for use with the Lifestyle™ Hinged Door (150 System) and Lifestyle™ Bifold Door (615 System). This reliable new lock set has a beveled latch bolt that is extended further into the strike plate when locked by key or snib.

The Sorrento lock set may be connected to a multi-point kit to provide remote locking and door seal compression. The working lock is face mounted in order to simplify fitting to the door stile.

Sorrento Mortice Lock and Handle Features
  • Interior snib lever for quick and convenient locking without the need for a key
  • Tough nylon slides on the lock bolt to protect the edge of the door jamb, reducing noise and providing a smooth closing action
  • Two-stage lock bolt - locking the door by key or snib lever causes the lock bolt to extend further into the strike plate
  • Steel cased lock body for increased strength
  • Australian design and manufacture
  • Quick lever reversal by loosening a screw (to change between left hand hinged and right hand hinged doors)
  • Interchangeable lock bolt can be easily swapped to suit both inward opening and outward opening doors
  • Available in black satin, satin chrome, and a range of powder coated finishes
  • Additional finishes available that are suitable for coastal and high humidity environments
  • Can be keyed alike



Sorrento Multi-point Kit - 15-504 Features
  • An upper and lower remote bolt actuated by operation of the door levers to provide positive locking and door sealing
  • Actuation of the remote bolts to lock the door causes the door seals to be compressed
  • 15mm bolt throw each end
  • Adjustable escutcheon allows the door compression to be set, ensuring a complete draft seal
  • Adjustable metal bolt tips
  • Easy installation using a patented system that guides the rods onto the centre lock, and the tubes can be cut to length on site to fit any door size



Description Part Number Colour

Sorrento Lock Set Kit
(Face Mount)

 15-501BL Black Satin
15-500SC Satin Chrome
15-500PR* Primrose
15-500CC* Custom Colour
Sorrento Inactive Lock Body with Lever
(Face Mount)		 15-501BL Black Satin
15-501SC Satin Chrome
15-501PR* Primrose
15-501CC* Custom Colour
Sorrento Twin Bolt for Bifold with Low Profile Handle 15-502BL Black Satin
15-502SC Satin Chrome
15-502PR* Primrose
15-502CC* Custom Colour
*Lead times may apply
]]> asdfasdfasdf () Furniture Mon, 16 Jul 2012 00:14:15 +0000 New Sliding/Stacking Door Locks https://www.lidcotechnicals.com.au/window-and-door-furniture/slidingstacking-door-locks https://www.lidcotechnicals.com.au/window-and-door-furniture/slidingstacking-door-locks D HandleThe door handle range incorporates advanced security and safety features making this product the ideal choice for sliding patio door applications. This range takes design cues from contemporary architectural styling to provide a harmonious look and feel throughout the home. The functionality has been enhanced by the intuitive operation of the unique sliding snib and the innovative LockAlert feature that indicates the lock status at a glance.

Application

The surface mounted lockset is suitable for use with DuoTherm™ and Lifestyle™ sliding and stacking doors. The flexible chassis coupled with innovative design features results in a non-handed product that is extremely easy to install and suitable for new and most retrofit applications.

Features

  • Twin locking beaks for added security
  • Door Close Detect button (DCD) anti-slam feature protects locking beaks from accidental damage
  • LockAlert indicator shows lockset status at a glance
  • DualSelect enables two stage key locking
  • SafetyRelease function minimises the risk of being locked in
  • Ergonomic sliding snib with intuitive downward motion to unlock

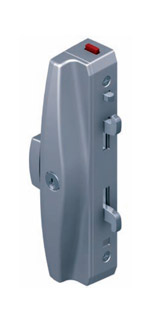

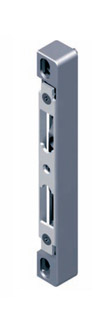

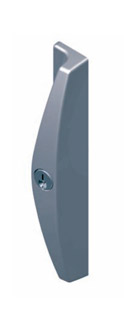

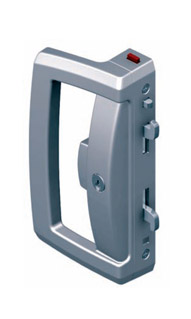

D Handle Slim Outer Pull Slim Inner Pull Universal Strike
D Handle Slim Handle Slim Handle Slim Handle



Standard Finishes
Colour D Handle Slim Handle
Black 00-019BL 00-020BL
Silver 00-019SI* 00-020SI*
White 00-019WH* 00-020WH*
Satin Chrome 00-019SC* 00-020SC*

*Lead times may apply

Strength and Durability

Made to the highest quality levels, the door handle range satisfies the Australian Standard requirements for strength and durability.

Fixing

Surface mounted lockset with concealed fixing. Industry standard 82mm pitching centres.

Handing

Field selectable handing enables selection of handing during installation.

Standard Keying

  • Supplied individually keyed with two keys per lock
  • 78,000 key combinations

Materials

  • Zinc diecast construction
  • Brass cylinders (Satin Chrome Pearl)

Standards

Conforms to Australian Standard AS4145.2:2008. Mechanical Locksets for Doors and Windows in Buildings.

  • Physical security - S4
  • Durability - D8

Download Technical Memo

]]> asdfasdfasdf () Furniture Wed, 15 Aug 2012 00:40:25 +0000 Stylish New Sliding Window Mortice Handle https://www.lidcotechnicals.com.au/window-and-door-furniture/sliding-window-mortice-lock https://www.lidcotechnicals.com.au/window-and-door-furniture/sliding-window-mortice-lock 00-018 Mortice Handle00-018 Mortice HandleIntroducing the new mortice sliding window lock with minimal visual impact to suit today’s modern architecture. Innovative hideaway handle allows for low profile mounting on window sash. Suitable for use with the DuoTherm™ Sliding/Stacking Window (372 System). Available keyed alike for one key convenience with all door and window locks that use a 5 pin C4 key.

Features and Specifications

  • Innovative hideaway handle for improved visual styling
  • Includes Anti-Slam and Anti-Lift features for added security
  • Snap on cover plates available in several colours
  • Cover plate conceals the fixing screws for improved security
  • High security, strong construction, attack resistance
  • Low profile fitment improves styling and prevents interference with blinds
  • CYL4 One Key Security - can be matched to most door locks for one key convenience
  • Added security for sliding windows
  • Non-handed latch system suits both left and right handed windows

Operation of the Lock

  • Push the release button to unlatch window and reveal the hideaway handle
  • Use the handle to open and close the window
  • Push handle into the flush position to latch window
  • Turn key 180 degrees to lock window
Standard Finishes
Part Number Cover Plate Colour
00-018BL Black
00-018SI* Silver*
00-018WH* White*


*Lead times may apply

Download Technical Memo

]]> asdfasdfasdf () Furniture Wed, 15 Aug 2012 01:29:44 +0000
